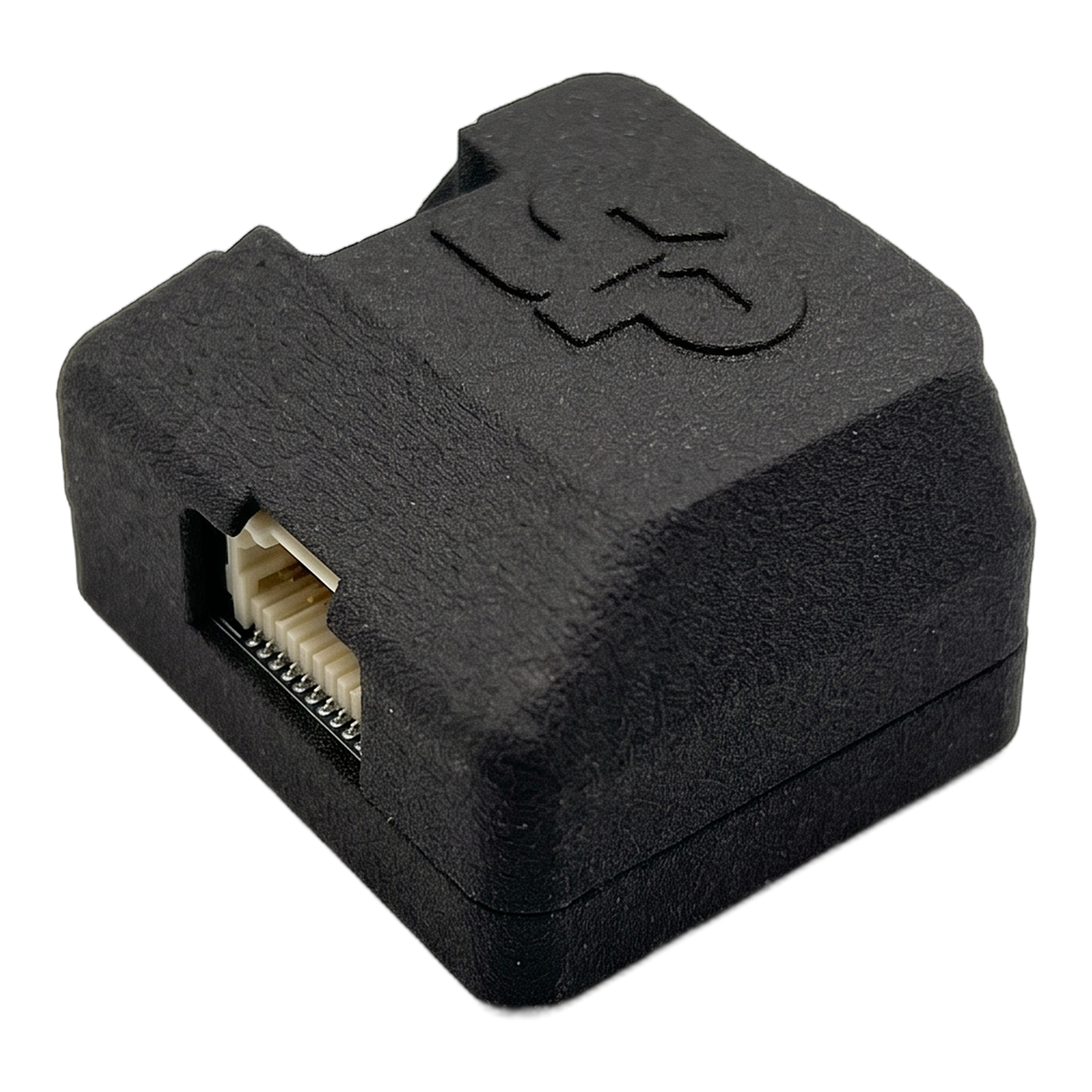

SkyPulse Breakout Board in its enclosure, side view showing the 20 pin Molex Pico-Clasp connector that connects to the Helios Interface port

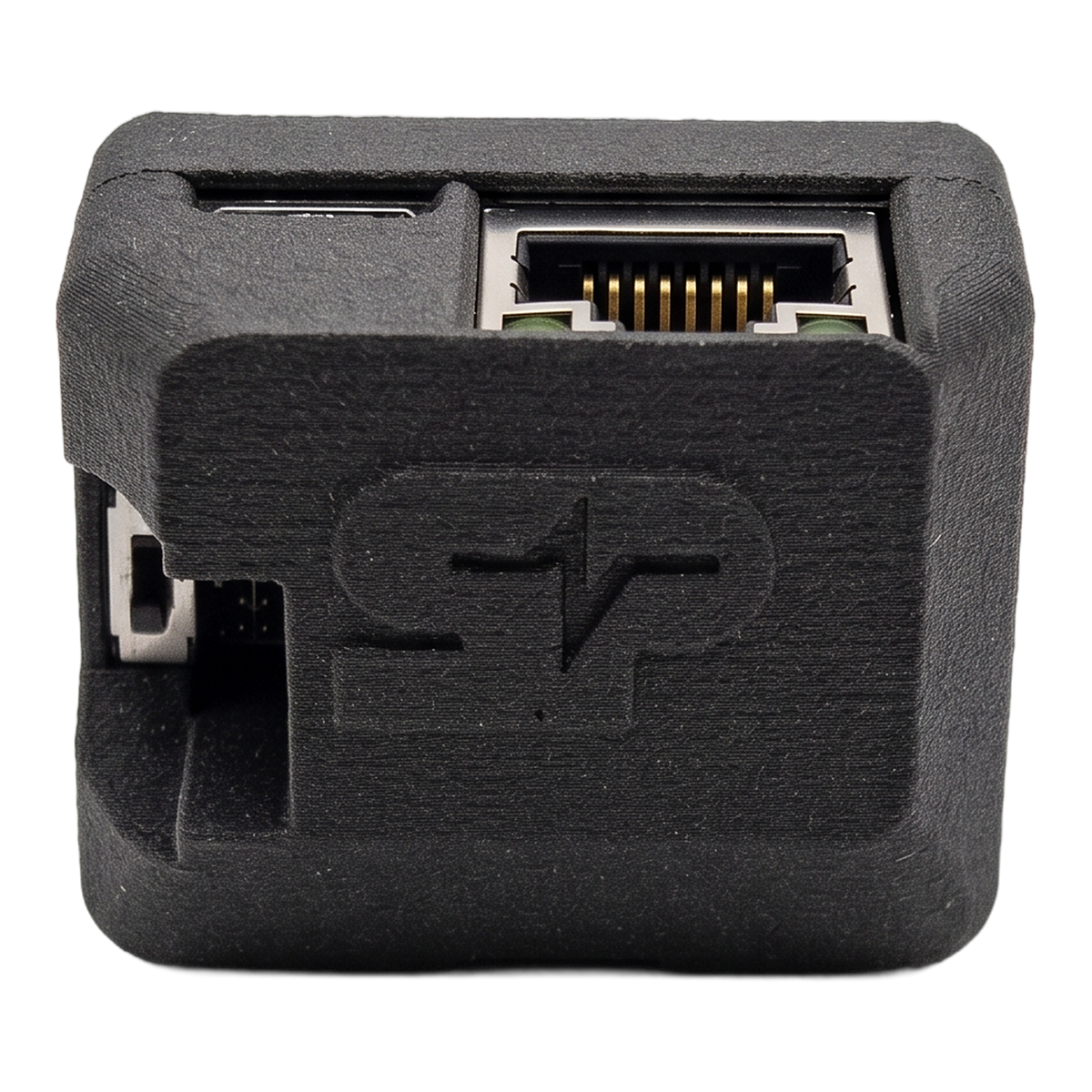

SkyPulse Breakout Board enclosure seen from above, with the SkyPulse logo on the lid and the RJ45 and USB-C ports along the far edge

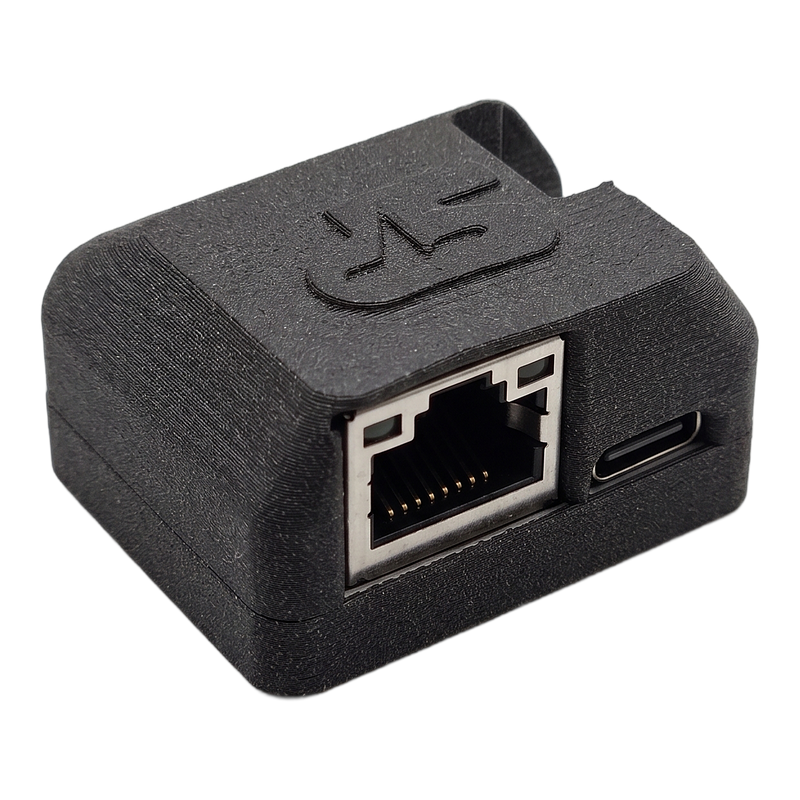

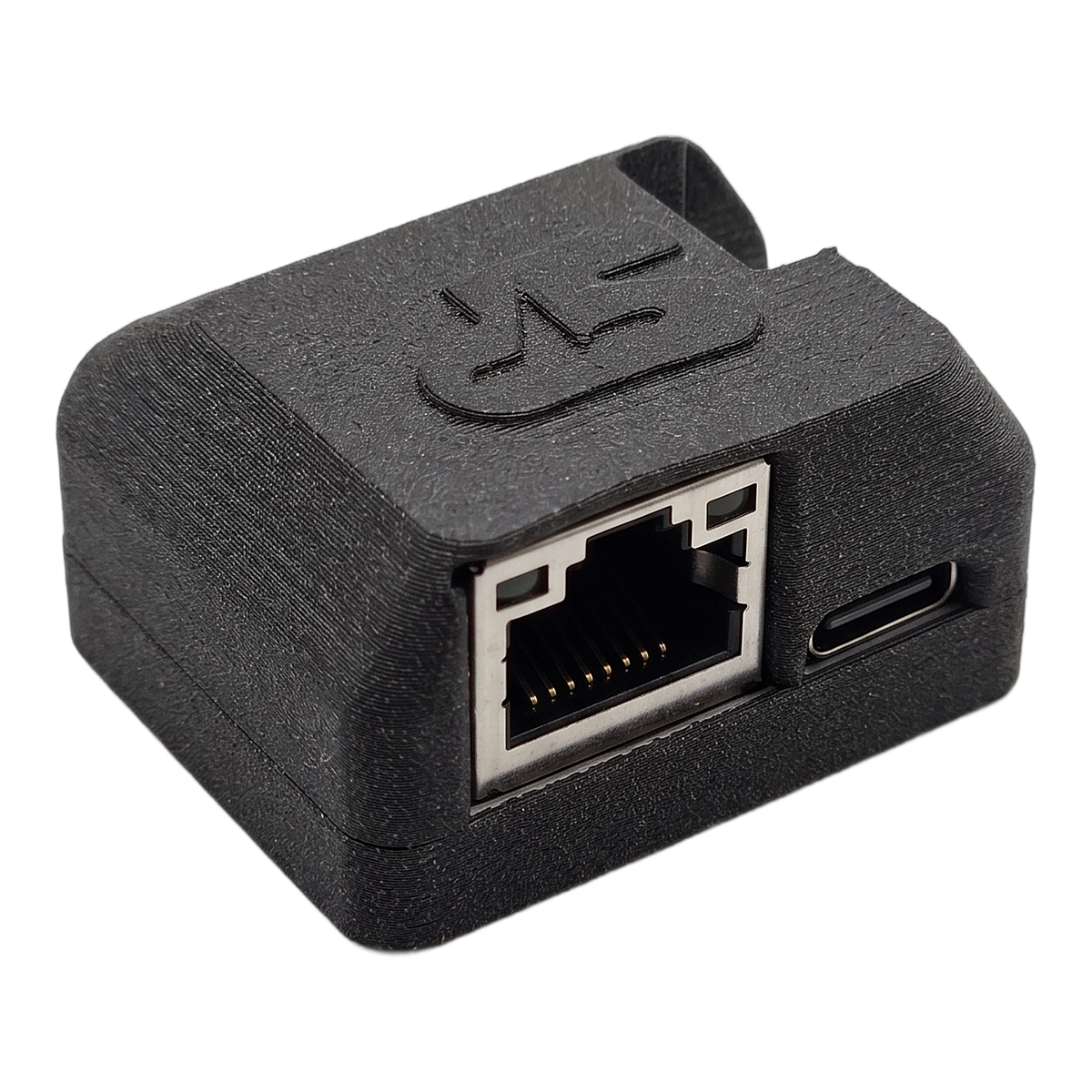

SkyPulse Breakout Board in its enclosure, front view of the RJ45 port and the USB-C port
SkyPulse Breakout Board, top-down view, showing the 20-pin Molex Pico-Clasp Interface connector, the Gigabit Ethernet RJ45 jack with its green status and yellow link LEDs, the USB-C port and the HOST / BOOT slide switch
SkyPulse Breakout Board, low three-quarter view, showing the Molex Pico-Clasp Interface connector, the RJ45 port and the USB-C port
SkyPulse Breakout Board, three-quarter view over the RJ45 end, showing the Ethernet port with its green status and yellow link / activity LEDs
SkyPulse Breakout Board, front elevation, showing the RJ45 jack face with its green status and yellow link LEDs, the USB-C port alongside and the HOST / BOOT slide switch

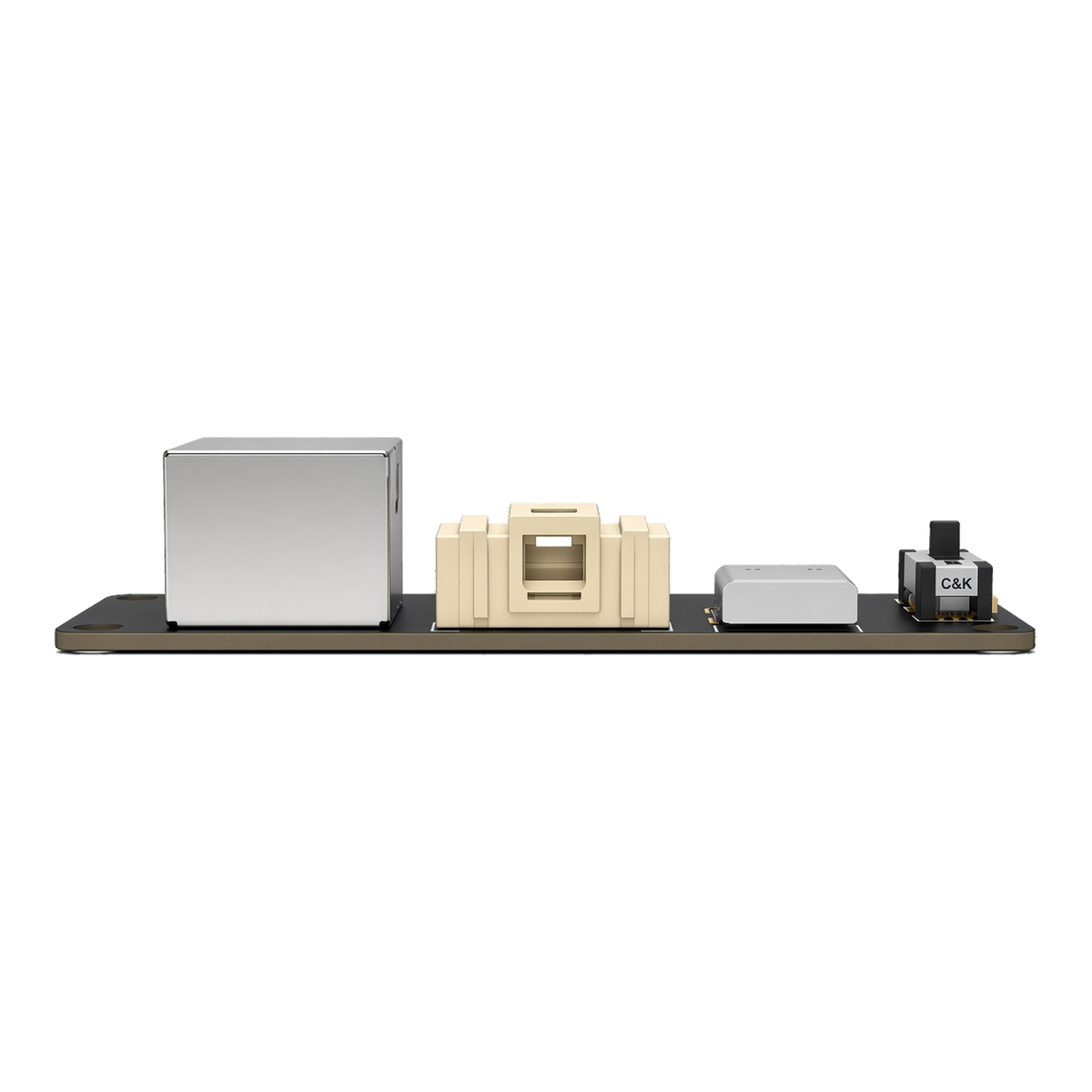

SkyPulse Breakout Board seen edge-on from the Interface connector side, showing the connector, the RJ45 jack, the USB-C port and the HOST / BOOT slide switch in one line

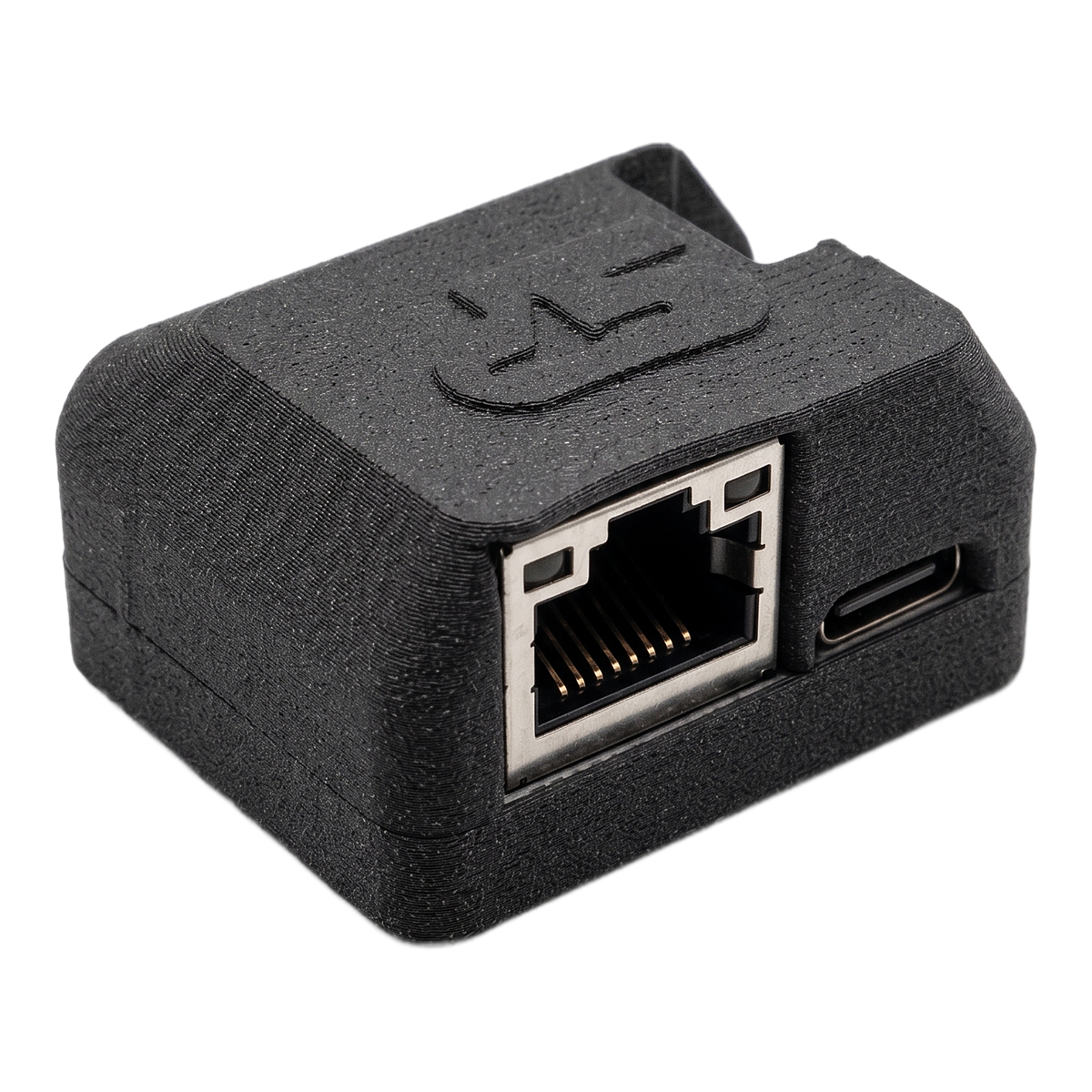

    SkyPulse Breakout Board in its enclosure, three-quarter front view, showing the Gigabit Ethernet RJ45 port and the USB-C port
    SkyPulse Breakout Board in its enclosure, side view showing the 20 pin Molex Pico-Clasp connector that connects to the Helios Interface port
    SkyPulse Breakout Board enclosure seen from above, with the SkyPulse logo on the lid and the RJ45 and USB-C ports along the far edge
    SkyPulse Breakout Board in its enclosure, front view of the RJ45 port and the USB-C port
    SkyPulse Breakout Board, top-down view, showing the 20-pin Molex Pico-Clasp Interface connector, the Gigabit Ethernet RJ45 jack with its green status and yellow link LEDs, the USB-C port and the HOST / BOOT slide switch
    SkyPulse Breakout Board, low three-quarter view, showing the Molex Pico-Clasp Interface connector, the RJ45 port and the USB-C port
    SkyPulse Breakout Board, three-quarter view over the RJ45 end, showing the Ethernet port with its green status and yellow link / activity LEDs
    SkyPulse Breakout Board, front elevation, showing the RJ45 jack face with its green status and yellow link LEDs, the USB-C port alongside and the HOST / BOOT slide switch
    SkyPulse Breakout Board seen edge-on from the Interface connector side, showing the connector, the RJ45 jack, the USB-C port and the HOST / BOOT slide switch in one line
SkyPulse Breakout Board in its enclosure, three-quarter front view, showing the Gigabit Ethernet RJ45 port and the USB-C port
SkyPulse Breakout Board in its enclosure, side view showing the 20 pin Molex Pico-Clasp connector that connects to the Helios Interface port
SkyPulse Breakout Board enclosure seen from above, with the SkyPulse logo on the lid and the RJ45 and USB-C ports along the far edge
SkyPulse Breakout Board in its enclosure, front view of the RJ45 port and the USB-C port
SkyPulse Breakout Board, top-down view, showing the 20-pin Molex Pico-Clasp Interface connector, the Gigabit Ethernet RJ45 jack with its green status and yellow link LEDs, the USB-C port and the HOST / BOOT slide switch
SkyPulse Breakout Board, low three-quarter view, showing the Molex Pico-Clasp Interface connector, the RJ45 port and the USB-C port
SkyPulse Breakout Board, three-quarter view over the RJ45 end, showing the Ethernet port with its green status and yellow link / activity LEDs
SkyPulse Breakout Board, front elevation, showing the RJ45 jack face with its green status and yellow link LEDs, the USB-C port alongside and the HOST / BOOT slide switch
SkyPulse Breakout Board seen edge-on from the Interface connector side, showing the connector, the RJ45 jack, the USB-C port and the HOST / BOOT slide switch in one line

SkyPulse Breakout Board

A quick and easy way to connect to the Helios via Ethernet and USB, with the option to flash a new image to the onboard companion computer.

P/N SP-BRK-01

  • Helios ब्रिंग-अप का पहला चरण — गाइड का शुरुआती निर्देश
  • इसके बिना: न SSH, न इमेज फ़्लैशिंग, न Wi-Fi तक कोई रास्ता
  • एक ही कनेक्टर से Gigabit Ethernet RJ45 और USB 2.0 Type-C
  • Host या Device / BOOT, स्विच SW1 से चुनें
In stock
Documentation ↗
$20.00 USD
$20.00 USD
SkyPulse Breakout Board in its enclosure, three-quarter front view, showing the Gigabit Ethernet RJ45 port and the USB-C port

SkyPulse

SkyPulse Breakout Board
$20.00 USD
$20.00 USD

Questions? Email an engineer

Last updated

संख्याएँ जो मायने रखती हैं
Gigabit Ethernet
USB 2.0 Type-C, डुअल-मोड
Host / BOOT SW1 पर चयन योग्य
20-पिन इंटरफ़ेस कनेक्टर

Ethernet and USB to the Helios

Provides a quick and easy way to connect to the Helios via Ethernet and USB.

Image flashing

Provides the option to flash a new image to the onboard companion computer.

Host mode

The companion computer acts as the USB host. Use this to communicate with the FMU and to attach USB devices to it (mouse, keyboard, etc).

पूर्ण दस्तावेज़ीकरण

SkyPulse Breakout Board: संपूर्ण संदर्भ

Overview

SkyPulse breakout board

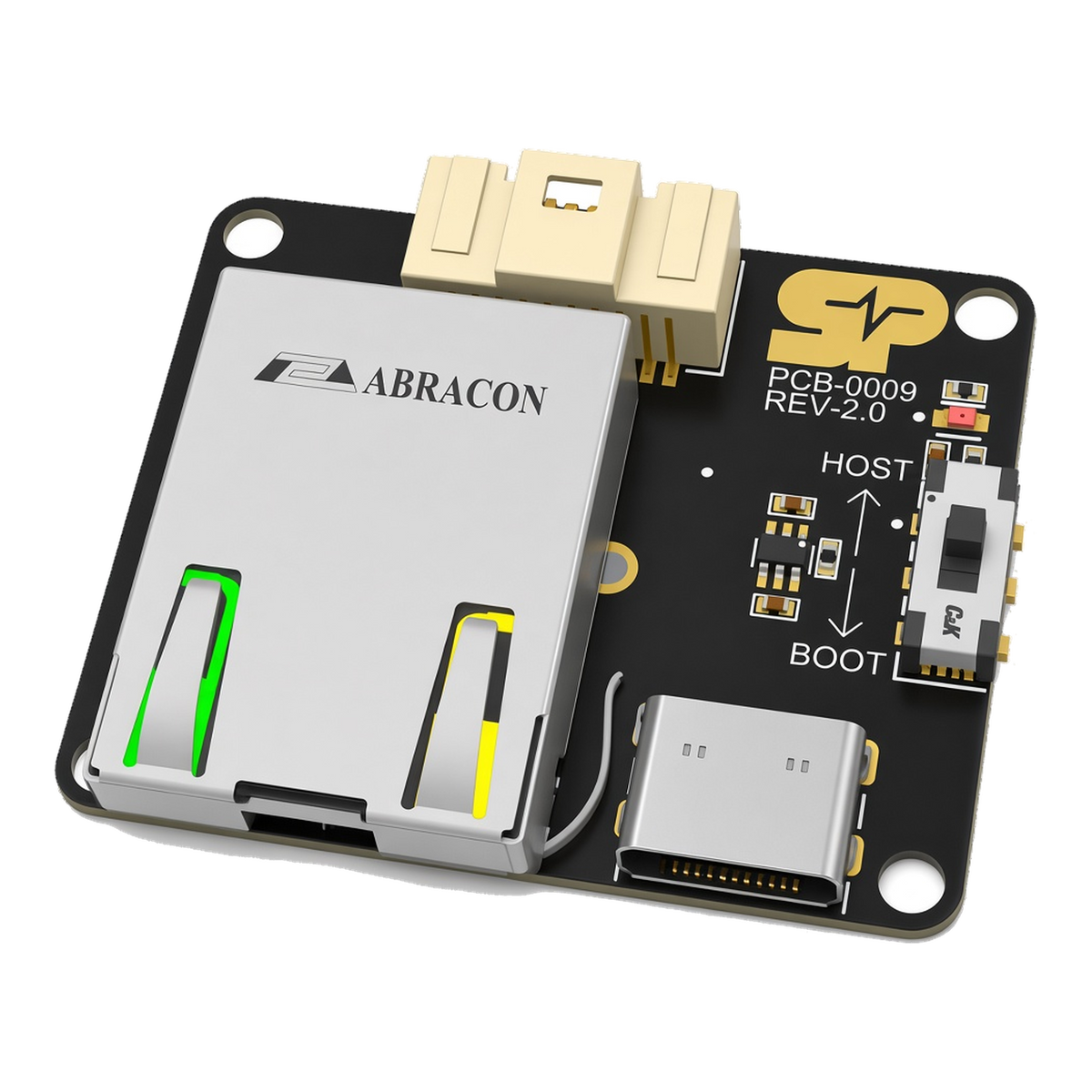

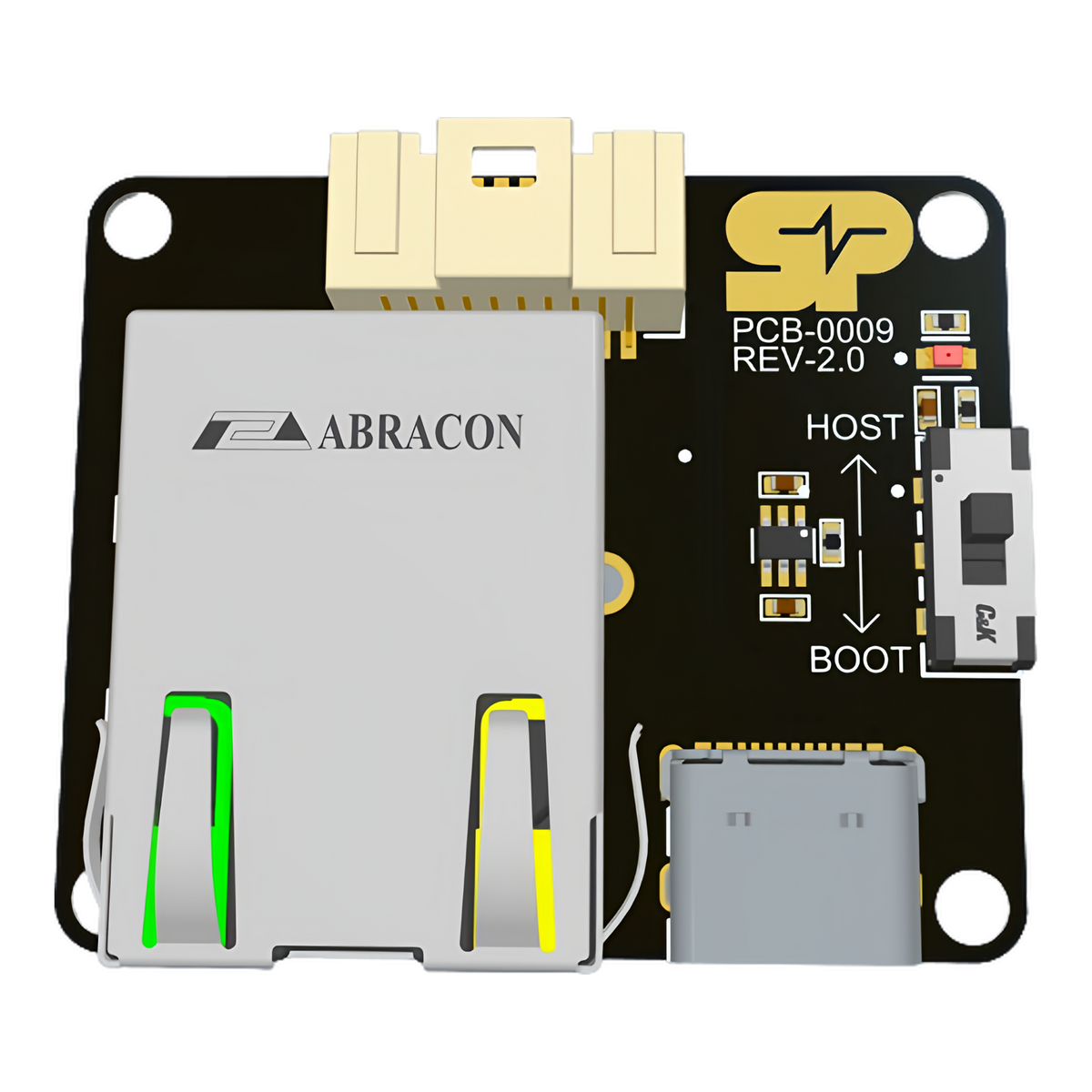

It connects to the Helios through the Interface port using a single 20 pin Molex Pico-Clasp connector, and breaks it out to a Gigabit Ethernet RJ45 port, and a dual-mode USB 2.0 Type-C port, which can be used as a device or host port (selectable via the slide switch onboard).

A quick and easy way to connect to the Helios via Ethernet and USB, with the option to flash a new image to the onboard companion computer.

Specifications
Connection to the Helios
Helios port Interface
Connector Single 20 pin Molex Pico-Clasp
Ports
Ethernet Gigabit Ethernet RJ45
USB Dual-mode USB 2.0 Type-C Can be used as a device or host port, selectable via the slide switch onboard.
Operation modes — Host / Device
Host mode The companion computer acts as the USB host Use this to communicate with the FMU and to attach USB devices to it (mouse, keyboard, etc).
Device / boot mode (flashing) Connect to the companion computer Use this to flash a new image / copy files, etc.
To switch to BOOT
1 Slide SW1 to BOOT
2 Wait for the status LED to turn off
3 Connect the USB-C port to a USB host (e.g. a PC) and flash A protection diode guards the board if a USB host is connected before the switch is moved, but connecting a USB host before switching to BOOT is not recommended.
Indicators
Power LED (D1, red) Lit when the board is powered in HOST mode Turns off in Device / BOOT mode (safe to connect a USB host).

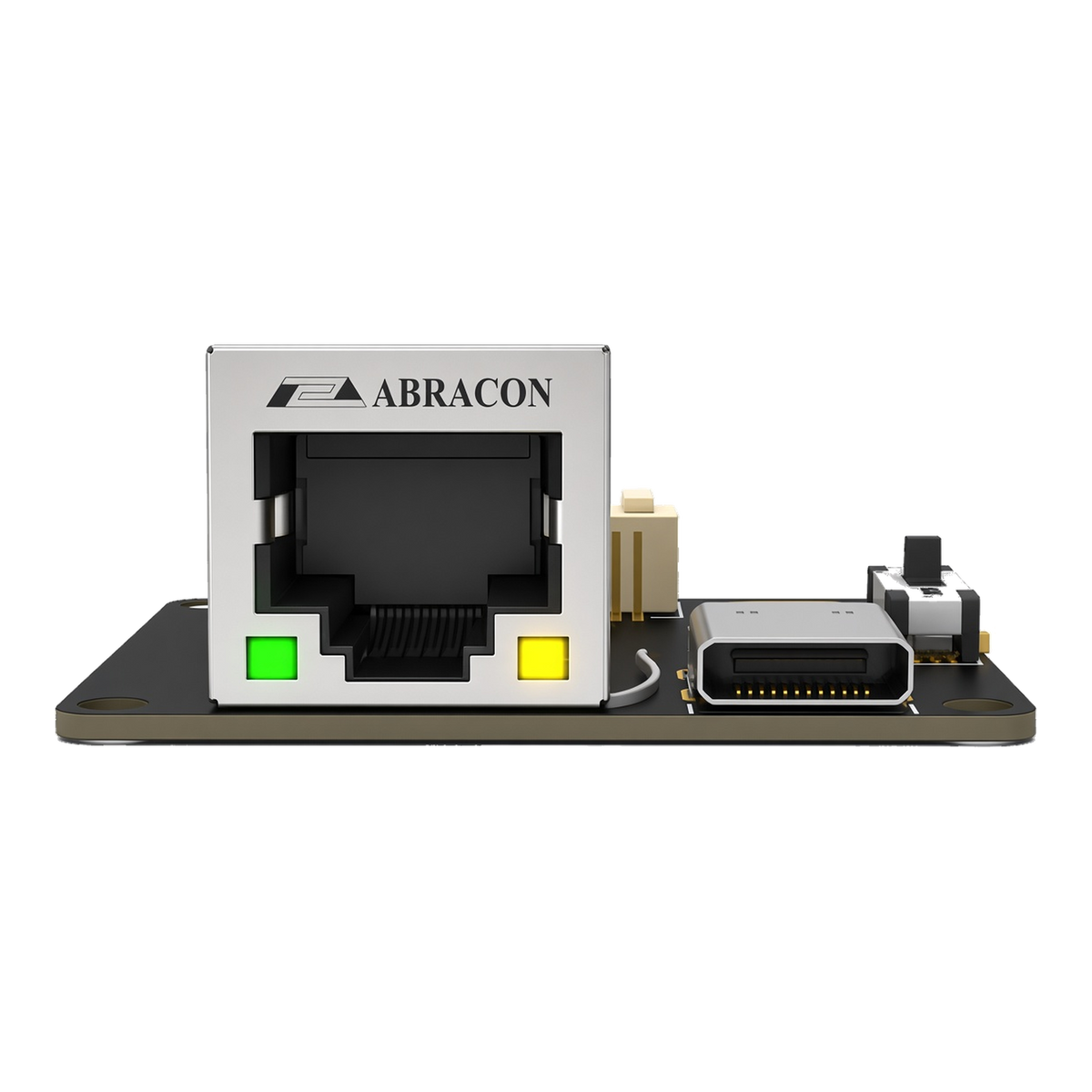

RJ45 LED, green Ethernet status
RJ45 LED, yellow Ethernet link / activity
Interfaces & pinout

It connects to the Helios through the Interface port using a single 20 pin Molex Pico-Clasp connector, and breaks it out to a Gigabit Ethernet RJ45 port and a dual-mode USB 2.0 Type-C port.

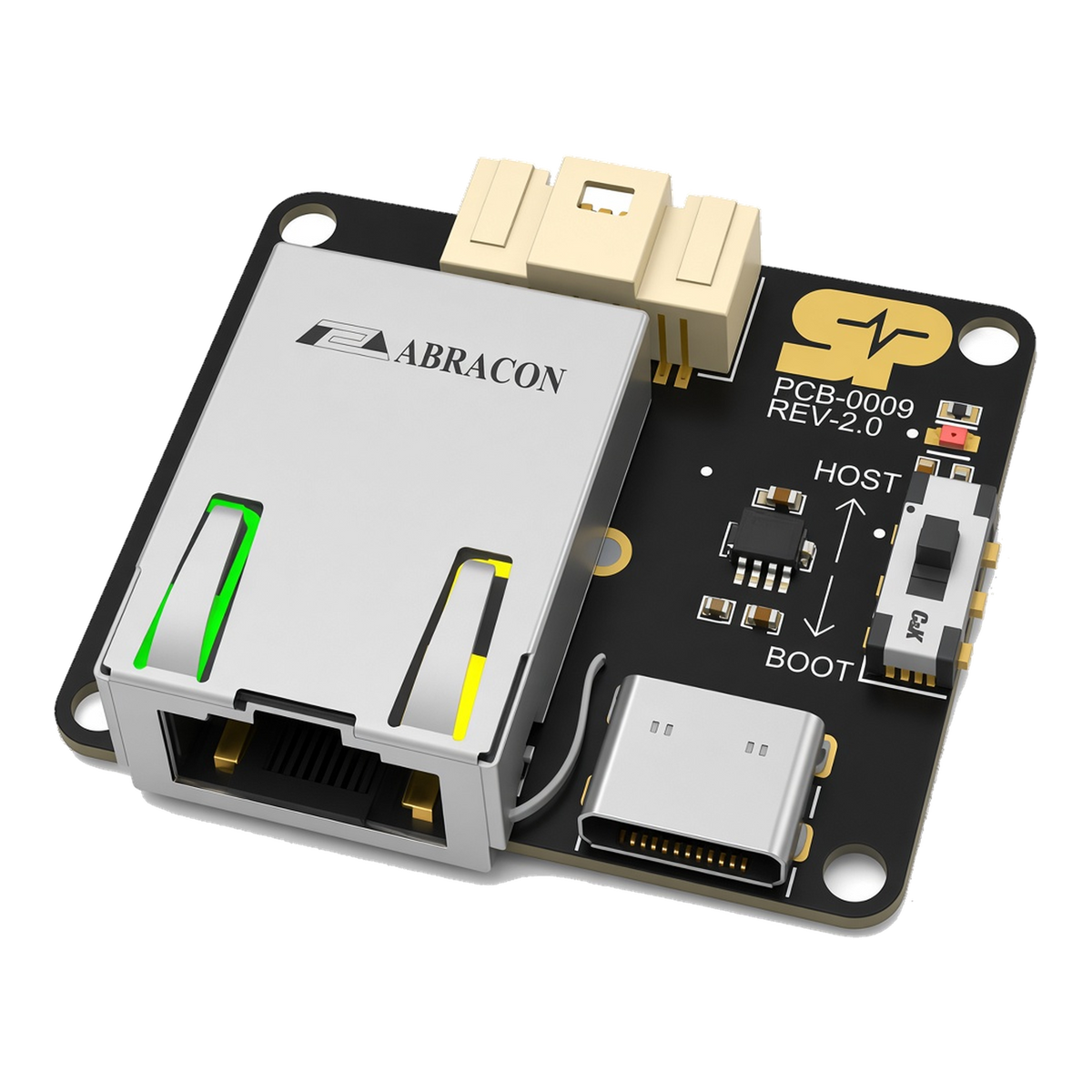

Gigabit Ethernet RJ45

RJ45 LEDs: green = Ethernet status; yellow = Ethernet link / activity.

Dual-mode USB 2.0 Type-C

Can be used as a device or host port, selectable via slide switch SW1.

20 pin Molex Pico-Clasp

A single connector to the Helios Interface port.

Pinout drawing is being prepared for publication. Contact engineering for the current revision.
